2000 Series
Aluminium
stairway
Manufactured in accordance with National Standards SANS 51004:2009 (BS EN1004:2004 material referring to BS EN 1999.1.1:2007).
Manufactured from structural aluminium alloy 6005 T6.
All stairway towers supplied with walkthrough frame. No need to climb over braces to gain access.
Full guardrail frame for extra safety.
Brace claws cast from industrial grade aluminium.
Platforms available in plywood deck.
Access platforms fitted with a closeable trap door.
Platforms fitted with lockable safety latches to prevent parts from being blown off, or being displaced.
Purpose made ladder with 110mm wide steps for easy and comfortable access.

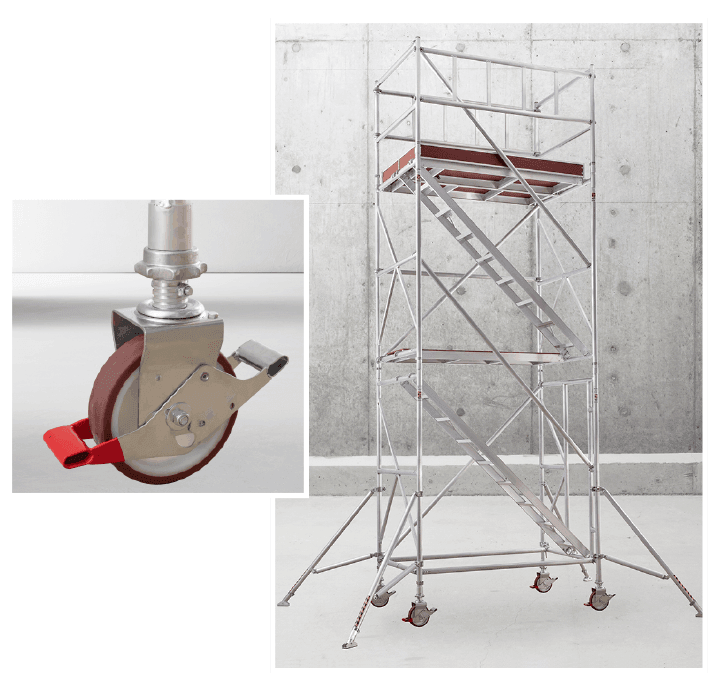

Lockable and height-adjustable castors for levelling as well as quick and easy relocation.

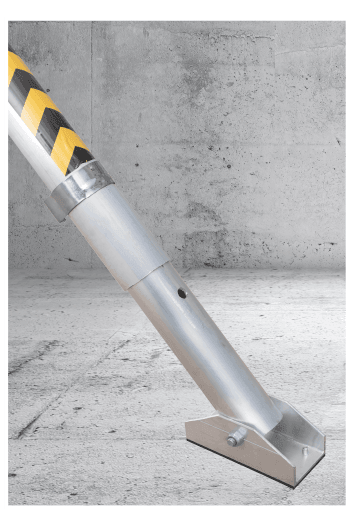

Three sizes adjustable stabilizers, supplied in accordance with height of tower.
Plywood toe board sets to prevent tools from being dropped from the working platform.
Lightweight for easy build application.
Combination configuration possible and available.
Available in 2-meter height increments.
Actual footprint 1340 x 2000 mm.
Maximum load weight on the platform – 200kg/m2.
Maximum safe load of the tower – 750kg.
Static tower to maximum height of 22.5m tied to the structure.
Mobile tower maximum height of the working platform – 14.5m.
Combination configuration possible and available.
Available in 2-meter height increments.
Actual footprint 1340 x 2000 mm.
Maximum load weight on the platform – 200kg/m2.
Maximum safe load of the tower – 750kg.
Static tower to maximum height of 22.5m tied to the structure.
Mobile tower maximum height of the working platform – 14.5m.
