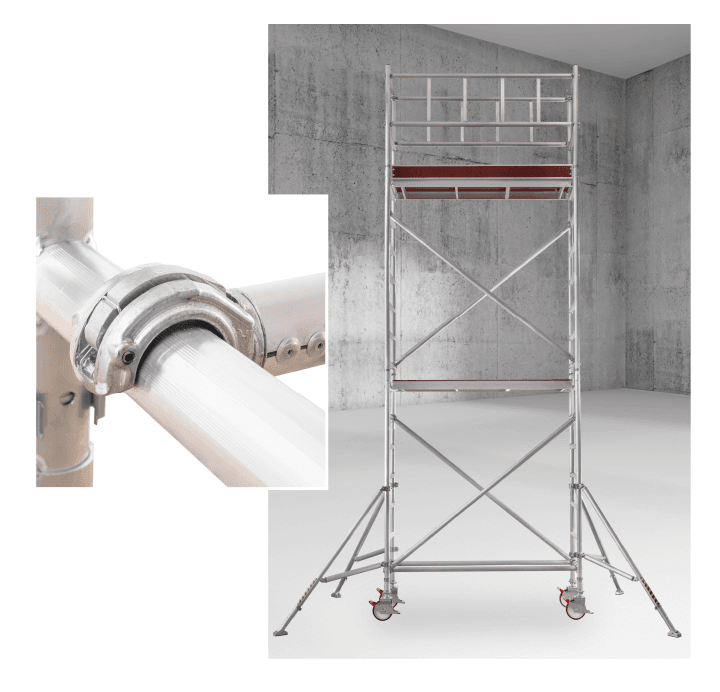

2100 Series
Narrow Span
Aluminium
Tower
Manufactured in accordance with National Standards SANS 51004:2009 (BS EN1004:2004 material referring to BS EN 1999.1.1:2007).
Rating – industrial heavy duty
Manufactured from structural aluminium alloy 6005 T6.
Brace claws casted from industrial grade aluminium.
Full guardrail frame for extra safety.
Platforms available in plywood deck.
Access platforms fitted with a closeable trap door.
Platforms fitted with lockable safety latches to prevent parts from being blown off, or being displaced.

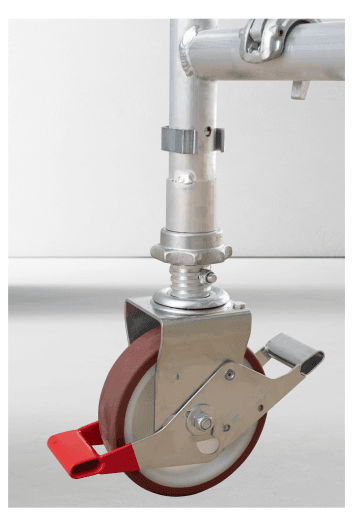

Lockable and height-adjustable castors for levelling as well as quick and easy relocation.
Supplied with European standard adjustable castor extension legs.
Plywood toe board sets to prevent tools from being dropped from the working platform.
Lightweight for easy build application.
Combination configuration possible and available.
Available in 1-meter height increments.
Actual footprint 730 x 2000mm.
Maximum load weight on the platform – 200kg/m2.
Maximum safe load of the tower – 750kg.
Mobile tower maximum height of working platform – 8.5m.
Combination configuration possible and available.
Available in 1-meter height increments.
Actual footprint 730 x 2000mm.
Maximum load weight on the platform – 200kg/m2.
Maximum safe load of the tower – 750kg.
Mobile tower maximum height of working platform – 8.5m.
